125 mm x 40 mm x 31.75 mm Ceramic Taper Cup Grinding Wheels
GC ABRASIVES
68042210
500 Pieces
Shanghai, China
1, 000, 000PCS/Month
L/C, T/T, D/P, Western Union, Paypal
Standard Package suit for long sea - voyage
Taper Cup Grinding Wheels / Cup Wheel
The vitrified taper cup wheels are intended for grinding flat and shaped surfaces. They operate with their faces.
Generally, they are used for surface grinding and sharpening of tools such as milling cutters, paper cutters

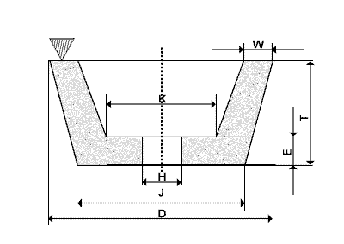

Dimensions [mm] | ||||||||
D | J | T | H | W | E | K | ||
80 | 57 | 32 | 13 | 6 | 6 | 46 | ||
54 | 50 | 20 | 10 | 12 | 30 | |||
95 | 73,5 | 40 | 32 | 6,5 | 10 | 60 | ||
100 | 71 | 35 | 20 | 8 | 10 | 56 | ||
40 | ||||||||
8 | 12 | 56 | ||||||
31,75; 32 | 8 | 10 | 56 | |||||
76 | 40 | 31,75; 32 | 8 | 12 | 61 | |||
125 | 96 | 40 | 20; 32 | 8 | 10 | 81 | ||
150 | 114 | 40; 50 | 32 | 10 | 13 | 96 | ||
13 | 15 | 96 | ||||||
120 | 50 | 32 | 37 | 20 | 60 | |||
175 | 60 | 50 | 32 | 10 | 15 | 50 | ||
200 | 180 | 100 | 76 | 16 | 25 | 140 | ||
220 | 210 | 60 | 32 | 10 | 20 | 190 | ||
225 | 75 | 76 | 32 | 15 | 20 | 60 | ||
250 | 200 | 140 | 76 | 31 | 30 | 151 | ||
