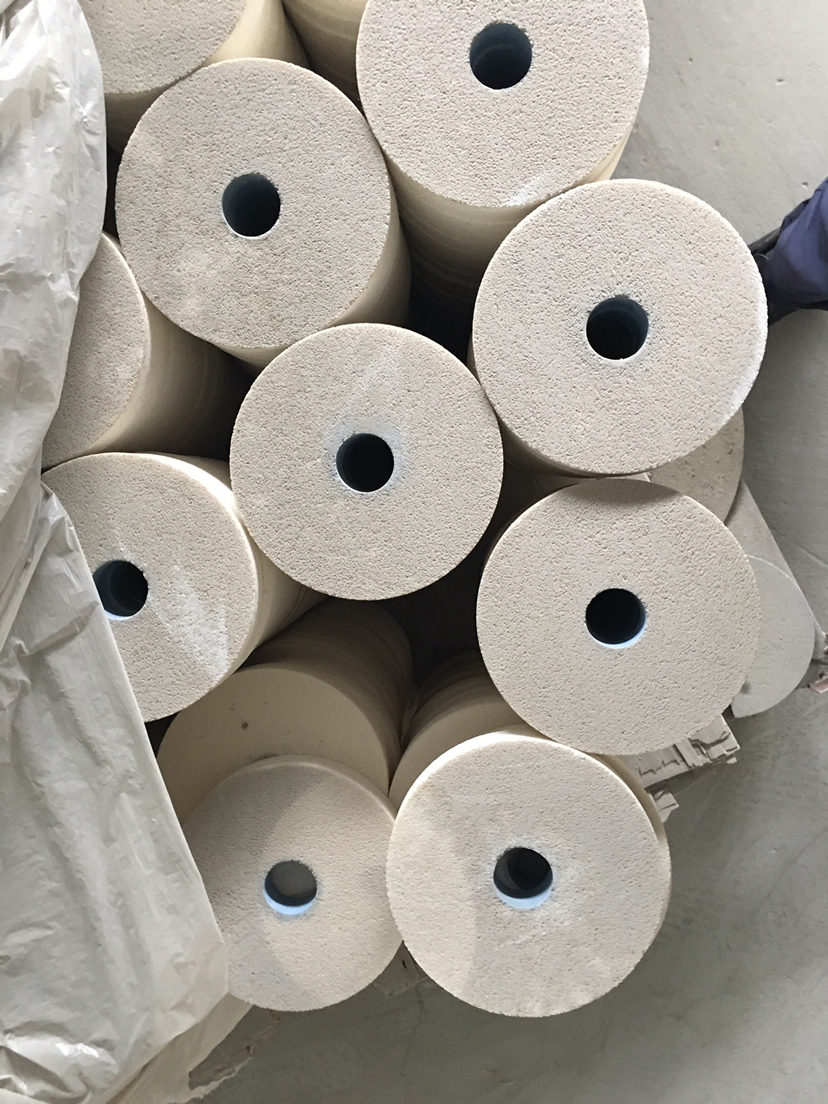

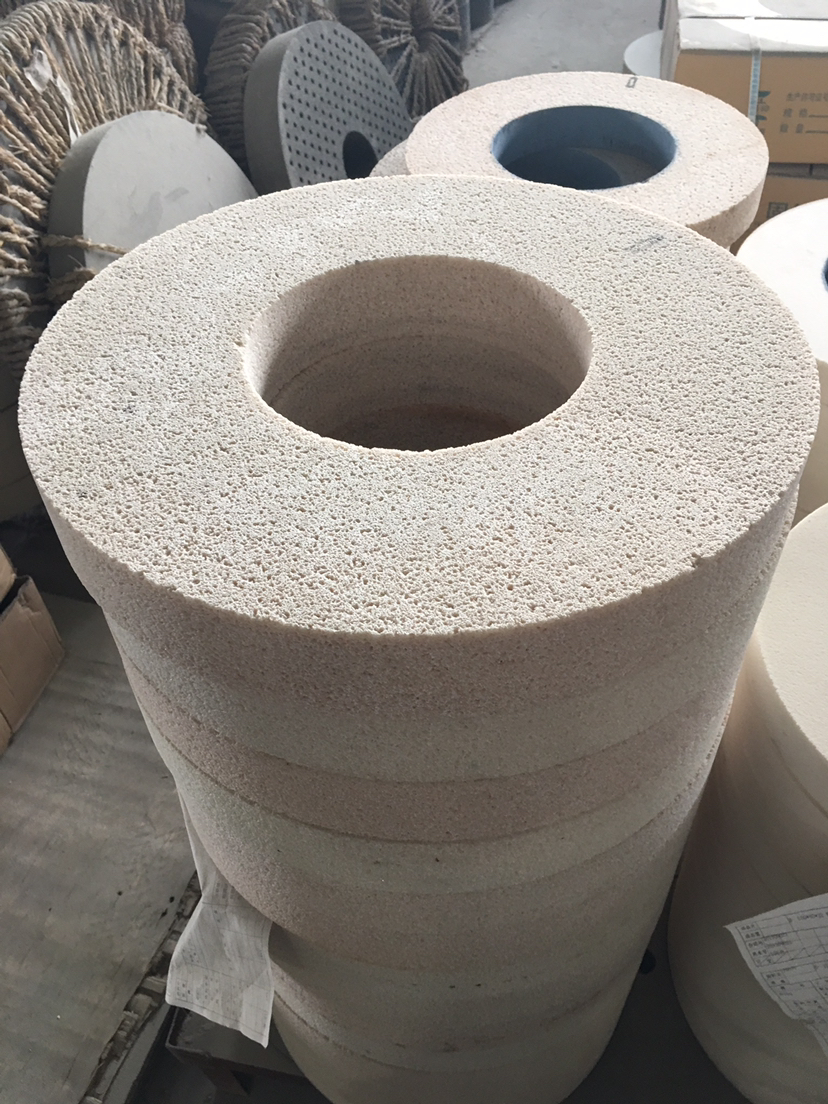

Cylindrical Grinding Wheels, Vitrified Cylinder Wheels Type Shape 2
GC ABRASIVES
68042210
1,000 Pieces
Shanghai, China
1, 000, 000PCS/Month
L/C, T/T, D/P, Western Union, Paypal
Standard Package suit for long sea - voyage
Cylinder Wheels
This product can be used for surface grinding machine. It is suitable for surface grinding of various industries. According to the material properties, surface quality and geometric precision of the workpiece, the matching grinding wheel can be chosen to the performance.
Type 2 | ||
Dimensions [mm] | ||
D | T | W |
100 | 80 | 10 |
150 | 80 | 20 |
200 | 100 | 20 |
200 | 60 | 25 |
200 | 80 | 24 |
200 | 90 | 20 |
250 | 100 | 50 |
250 | 90 | 25 |
300 | 75 | 50 |
350 | 70 | 40 |
Other dimensions are available on individual request.
Remark:
It is necessary to determine the centring system, i.e.:
in relation to the outer diameter
in relation to the hole diameter,
which implies the dimensional tolerances.
Cylinder Wheels
This product can be used for surface grinding machine. It is suitable for surface grinding of various industries. According to the material properties, surface quality and geometric precision of the workpiece, the matching grinding wheel can be chosen to the performance.
Type 2 | ||
Dimensions [mm] | ||
D | T | W |
100 | 80 | 10 |
150 | 80 | 20 |
200 | 100 | 20 |
200 | 60 | 25 |
200 | 80 | 24 |
200 | 90 | 20 |
250 | 100 | 50 |
250 | 90 | 25 |
300 | 75 | 50 |
350 | 70 | 40 |
Other dimensions are available on individual request.
Remark:
It is necessary to determine the centring system, i.e.:
in relation to the outer diameter
in relation to the hole diameter,
which implies the dimensional tolerances.
