Flap Wheels

Quantity:
Availability:





Inquire Add to Basket

Product Description

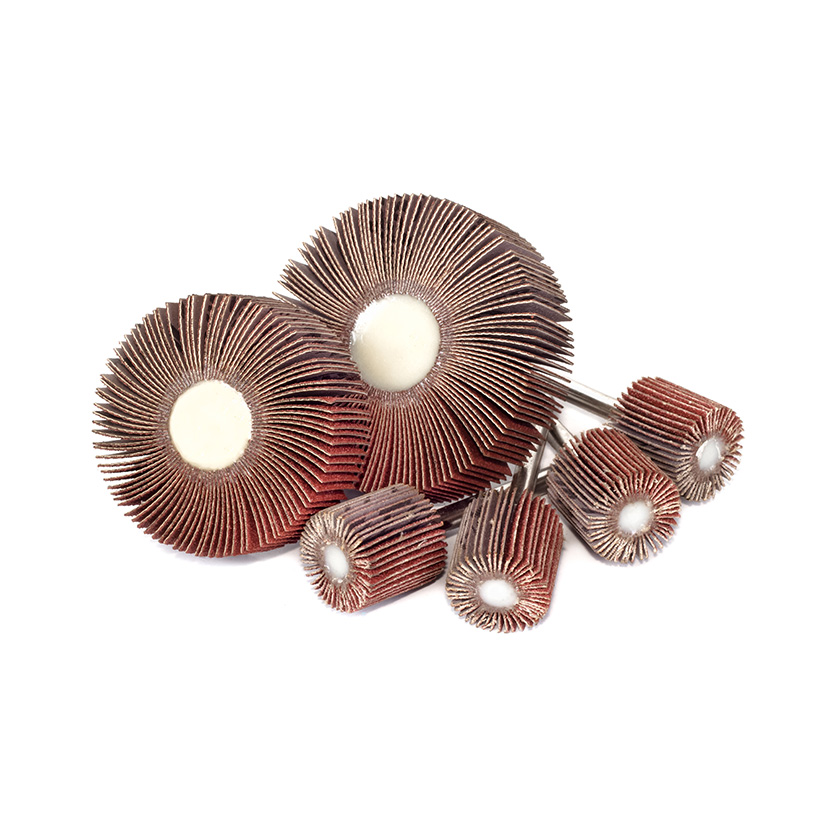

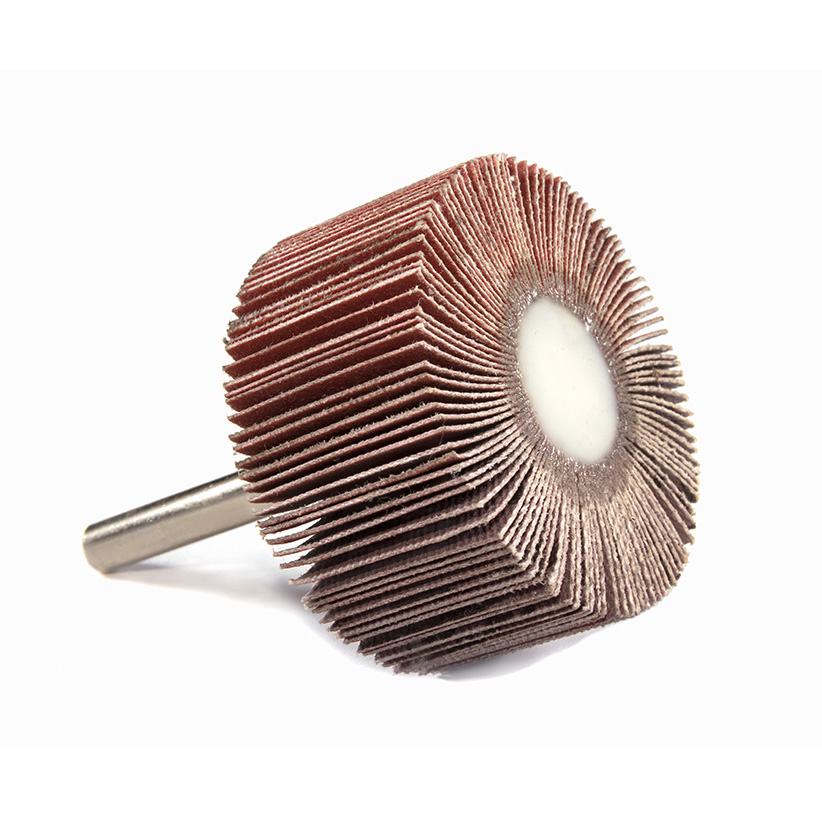

Aluminium Oxide flap wheels on 6mm shaft

Description: Aluminium oxide flaps and X-Flex weight backing. 6-mm diameter cylindrical shaft.

Main features and benefits: These wheels are our most versatile RG tools. Robust and suitable for numerous applications on work surfaces of various kinds. Excellent flexibility.

Recommended applications: Finishing, light deburring, cleaning or preparation for subsequent treatments (chromium plating, nickel plating or painting) on small or hard-to-reach surfaces such as the internal surfaces of pipes, cylinders, parts of irregular shape.

Work surfaces: Stainless steel, standard steel, alloyed steel, aluminium, titanium, nonferrous materials and alloys, plastic materials, glass fibre, rubber, marble, stone, concrete, wood, hide or leather

SKU#	Diameter mm	Thickness mm	Shank mm	Grit #60	Grit #80	Grit #100	Grit #120	Grit #150	Grit #180	Max. Speed	Qty per pack	Qty per Carton
	20	10	6	•	•	•	•	•	•	38,000	10	200
	20	13	6	•	•	•	•	•	•	38,000	10	200
	20	15	6	•	•	•	•	•	•	38,000	10	200
	20	20	6	•	•	•	•	•	•	38,000	10	200
	20	25	6	•	•	•	•	•	•	38,000	10	200
	20	40	6	•	•	•	•	•	•	38,000	10	200
	20	50	6	•	•	•	•	•	•	38,000	10	200
	25	10	6	•	•	•	•	•	•	38,000	10	200
	25	13	6	•	•	•	•	•	•	38,000	10	200
	25	15	6	•	•	•	•	•	•	38,000	10	200
	25	25	6	•	•	•	•	•	•	38,000	10	200
	25	40	6	•	•	•	•	•	•	38,000	10	200
	25	50	6	•	•	•	•	•	•	38,000	10	200
	30	15	6	•	•	•	•	•	•	31,800	10	200
	30	20	6	•	•	•	•	•	•	31,800	10	200
	30	25	6	•	•	•	•	•	•	31,800	10	200
	30	30	6	•	•	•	•	•	•	31,800	10	200
	40	10	6	•	•	•	•	•	•	23,800	10	200
	40	13	6	•	•	•	•	•	•	23,800	10	200
	40	15	6	•	•	•	•	•	•	23,800	10	200
	40	20	6	•	•	•	•	•	•	23,800	10	200
	40	25	6	•	•	•	•	•	•	23,800	10	200
	40	30	6	•	•	•	•	•	•	23,800	10	200
	40	40	6	•	•	•	•	•	•	23,800	10	200
	40	50	6	•	•	•	•	•	•	23,800	10	200
	50	10	6	•	•	•	•	•	•	19,000	10	200
	50	13	6	•	•	•	•	•	•	19,000	10	200
	50	15	6	•	•	•	•	•	•	19,000	10	200
	50	20	6	•	•	•	•	•	•	19,000	10	200
	50	25	6	•	•	•	•	•	•	19,000	10	200
	50	30	6	•	•	•	•	•	•	19,000	10	200
	50	40	6	•	•	•	•	•	•	19,000	10	200
	50	50	6	•	•	•	•	•	•	19,000	10	200
	60	13	6	•	•	•	•	•	•	16,100	10	200
	60	15	6	•	•	•	•	•	•	16,100	10	200
	60	20	6	•	•	•	•	•	•	16,100	10	200
	60	25	6	•	•	•	•	•	•	16,100	10	200
	60	30	6	•	•	•	•	•	•	16,100	10	200
	60	40	6	•	•	•	•	•	•	16,100	10	200
	60	50	6	•	•	•	•	•	•	16,100	10	200
	76	13	6	•	•	•	•	•	•	11,800	10	200
	76	15	6	•	•	•	•	•	•	11,800	10	200
	76	20	6	•	•	•	•	•	•	11,800	10	200
	76	25	6	•	•	•	•	•	•	11,800	10	200
	76	30	6	•	•	•	•	•	•	11,800	10	200
	76	40	6	•	•	•	•	•	•	11,800	10	200
	76	50	6	•	•	•	•	•	•	11,800	10	200

Aluminium Oxide on 3mm shaft

Abrasive Materials: Refined aluminium oxide grain / X-wt. flexible cotton cloth

Mounted Type: Straight steel shank

Application: Finishing, light – deburring, cleaning, preparation on hard to reach surfaces.

Workpiece: Stainless steel, alloyed steel, NF-metal, aluminium, titanium, plastic, stone.

Performance: Aggressive grinding result, high flexible, consistent flap wear off, adapt to irregular shapes.

SKU#	Diameter mm	Thickness mm	Shank mm	Grit #60	Grit #80	Grit #100	Grit #120	Grit #150	Grit #180	Max. Speed	Qty per pack	Qty per Carton
	10	10	3	•	•	•	•	•	•	38,000	10	200
	10	15	3	•	•	•	•	•	•	38000	10	200
	15	6	3	•	•	•	•	•	•	38,000	10	200
	15	10	3	•	•	•	•	•	•	38,000	10	200
	15	13	3	•	•	•	•	•	•	38000	10	200
	15	15	3	•	•	•	•	•	•	38,000	10	200
	15	20	3	•	•	•	•	•	•	38,000	10	200
	15	25	3	•	•	•	•	•	•	38000	10	200
	15	40	3	•	•	•	•	•	•	38,000	10	200
	15	50	3	•	•	•	•	•	•	38,000	10	200
	20	6	3	•	•	•	•	•	•	38000	10	200
	20	10	3	•	•	•	•	•	•	38,000	10	200
	20	15	3	•	•	•	•	•	•	38000	10	200
	20	20	3	•	•	•	•	•	•	38,000	10	200
	20	25	3	•	•	•	•	•	•	38,000	10	200
	20	40	3	•	•	•	•	•	•	38000	10	200
	20	50	3	•	•	•	•	•	•	38,000	10	200
	25	10	3	•	•	•	•	•	•	38,000	10	200
	25	15	3	•	•	•	•	•	•	38,000	10	200
	25	20	3	•	•	•	•	•	•	38000	10	200
	25	25	3	•	•	•	•	•	•	38,000	10	200
	25	40	3	•	•	•	•	•	•	38000	10	200
	25	50	3	•	•	•	•	•	•	38,000	10	200
	30	6	3	•	•	•	•	•	•	38,000	10	200
	30	10	3	•	•	•	•	•	•	38000	10	200
	30	15	3	•	•	•	•	•	•	38,000	10	200

Aluminium Oxide flap wheels on threaded shaft

Description: Aluminium oxide flaps and X-Flex weight backing ¼-20 UNC shaft thread.

Main features and benefits: Being quick to change, our RG flap wheels on threaded shaft can be ideally used in robotized applications or intensive production lines. In addition to this, it is extremely easy to switch over to a new grit on the same tool by manually unscrewing the wheel.

Recommended applications: Finishing small parts, moulds, alloy wheels, robotized applications.

Work surfaces: Stainless steel, standard steel, alloyed steel, aluminium, titanium, nonferrous materials and alloys, plastic materials, glass fibre, rubber, marble.

SKU#

Diameter

mm

Thickness mm

Shank

mm

Grit

#60

Grit

#80

Grit

#100

Grit

#120

Grit

#150

Grit

#180

Max.

Speed

Qty

per pack

Qty

per Carton

25

15

TH

•

38,200

10

200

25

TH

•

38,200

10

200

30

10

TH

•

31,200

10

200

40

13

TH

•

23,800

10

200

40

25

TH

•

23,800

10

200

50

13

TH

•

19,000

10

200

50

20

TH

•

19,000

10

200

50

25

TH

•

19,000

10

200

60

13

TH

•

16,100

10

200

60

25

TH

•

16,100

10

200

76

13

TH

•

11,800

10

200

76

20

TH

•

11,800

10

200

76

25

TH

•

11,800

10

200

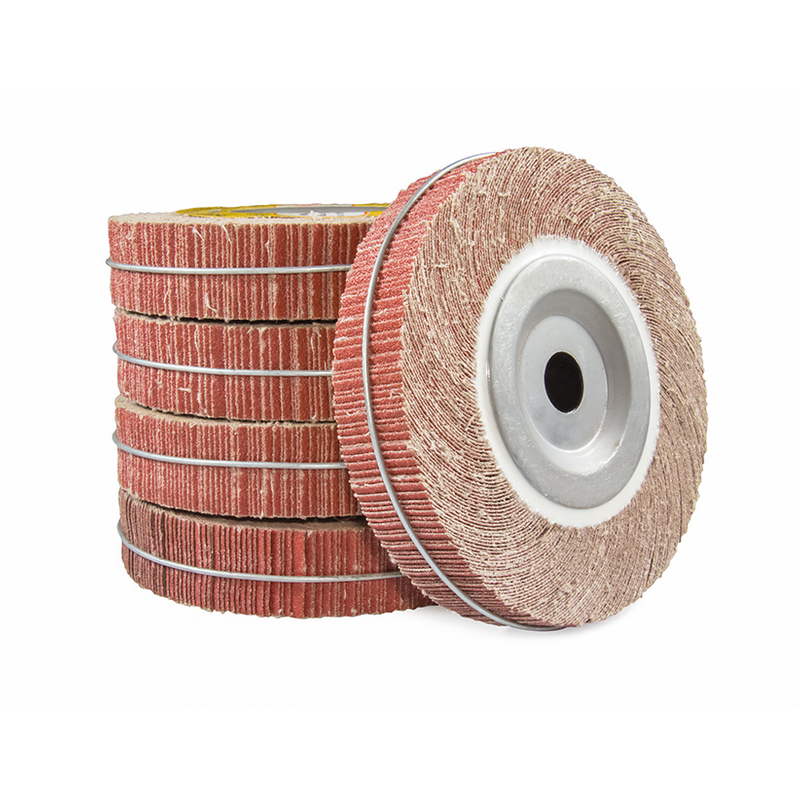

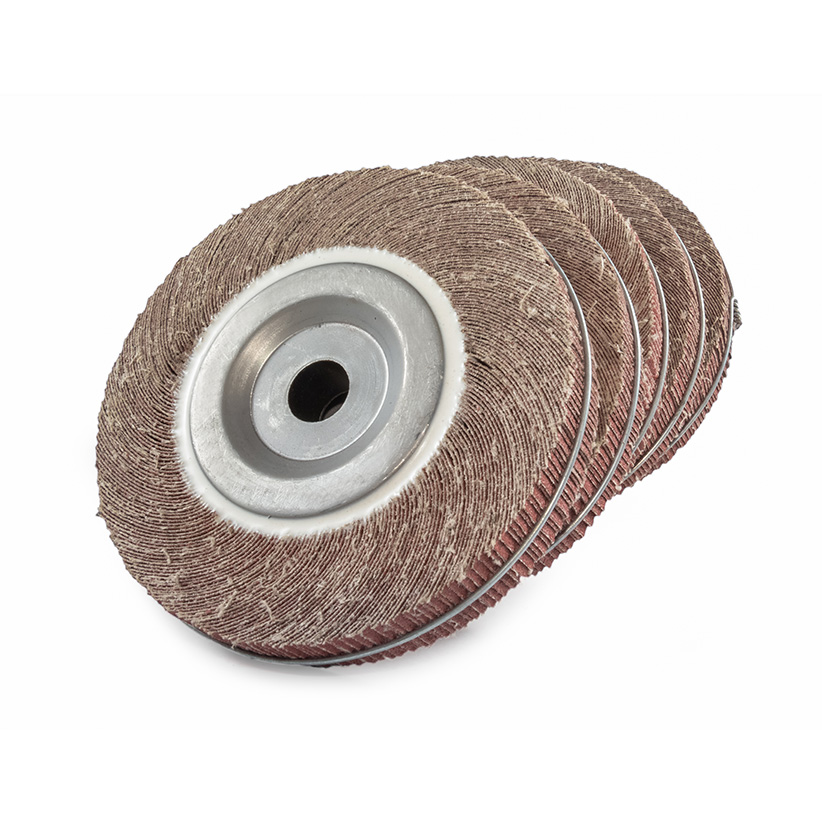

Aluminium Oxide Flap Wheels on Flanges

Description: Aluminium Oxide flaps and X-Flex weight backing. The central wooden hub has a hole allowing it to be fitted on threaded conical shafts.
Main features and benefits: Threaded shafts allow you to fit and remove very quickly while reducing balance control.
Recommended applications: Finishing wide flat, concave and convex surfaces; grinding the internal and outer surfaces of tanks, containers and pipes; finishing parts of irregular shape.
Work surfaces: Stainless steel, standard steel, alloyed steel, nonferrous materials and alloys.

SKU#

Diameter

（mm）

Thickness

mm

Shank

mm

Grit

#40

Grit

#60

Grit

#80

Grit

#120

Grit

#150

Grit

#180

Grit

#240

Grit

#320

Max.

Speed

Qty

per pack

Qty

per Carton

100

25

16

•

8，800

10

100

25

•

8，800

10

100

30

25

•

8，800

10

100

50

16

•

8，800

10

100

50

25

•

5，700

10

150

25

•

5，700

10

150

30

25

•

5，700

10

150

40

25

•

5，700

10

150

50

25

•

5，200

10

165

25

•

5，200

10

165

30

25

•

5，200

10

165

40

25

•

5，200

10

165

50

25

•

5，200

10

165

25

30

•

5，200

10

165

30

•

5，200

10

165

50

30

•

5，200

10

165

25

45

•

5，200

10

165

30

45

•

5，200

10

165

50

45

•

5，200

10

165

25

54

•

5，200

10

165

30

54

•

5，200

10

165

50

54

•

5，200

10

200

25

30

•

4，300

10

200

30

•

4，300

10

200

50

30

•

4，300

10

200

25

45

•

4，300

10

200

30

45

•

4，300

10

200

50

45

•

4，300

10

200

25

54

•

4，300

10

200

30

54

•

4，300

10

200

50

54

•

4，300

10

250

50

45

•

3，400

10

250

25

100

•

3，400

10

250

30

100

•

3，400

10

250

50

100

•

3，400

10

300

30

100

•

2，850

10

300

50

100

•

2，850

10

300

75

100

•

2，850

10

350

30

132

•

2，250

10

350

50

132

•

2，250

10

350

60

132

•

2，250

10

350

75

132

•

2，250

10

350

100

132

•

2，250

10

410

30

152

•

2，080

10

410

50

152

•

2，080

10

410

60

152

•

2，080

10

410

75

152

•

2，080

10

410

100

152

•

2，080

10
