150x50x31.75mm WA46KVL S/ CUP GRINDING WHEEL

Features and Benefits Superior grain holding properties Improving wheel form and corner holding Provides the ultimate wheel strength Lighter construction Application Information Designed for metal removal, deburring, shaping and sharpening needs

Quantity:
Availability:





Inquire Add to Basket

Model:
150x50x31.75mm WA46KVL S/ CUP GRINDING WHEEL
Brand:
GC ABRASIVES
Code:
68042210
Min. Order:
500 Pieces
Port:
Shanghai, China
Production Capacity:
50, 000, 000PCS/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Transport Package:
Standard Package suit for long sea - voyage

Product Description

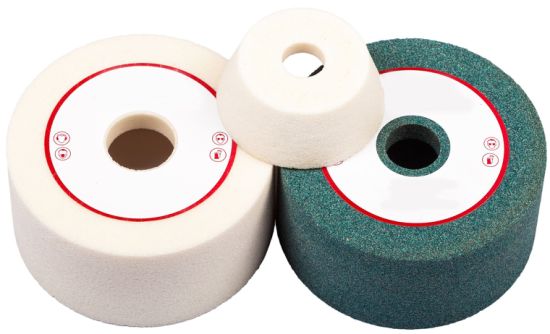

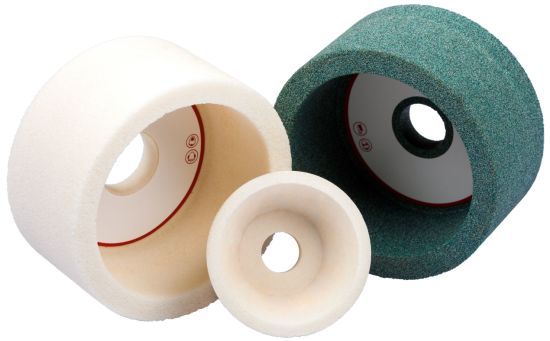

Straight Cup Grinding Wheels / Bowl Wheel

The vitrified straight cup grinding wheels are intended for grinding flat and shaped surfaces. They operate with their faces.

Generally, they are used for surface grinding and tool sharpening, e.g. grinding of paper cutters, circular tools, milling cutters.

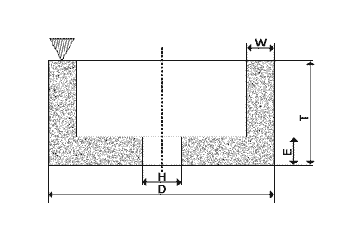

form 6

Type 6
Dimensions [mm]
D	T	H	W	E
80	40	20	6	10
80	40	32	15	12
90	40	20; 32	13; 15	15
100	27	20	12	12
	40	20	5	12
			6	10
			8	10; 12
			10	10
			12	12
		32	6	10
	50	20	8; 12	13
			10	10
			15	12
		32	6	10
		32	20	13
		51	7	9
D	T	H	W	E
125	40	20; 32	8	10
	40	32	20	15
	50	20	8	13
		20	20	15
		31,75; 32	7	12
			8; 10; 13	13
			20	15
		51	8	15
		51	22,5	20
	60	32	12	16
	60	50,8	22,5	20
	63	32	8	13
	63	32	20	20
	65	20	15	15
		20	20	20
		32	8	13; 15
		32	30	30
150	30	32	24	10
	50; 51	32	10	13; 16
	50; 51	32	20	20
	60	20	15	15
	60	32; 76	10	16
	63	32	10	16
		32	15	16; 19
		51	15	19
	65	76	15	19
	80	32	8	19
			10	15
			10; 12,5; 13	16
			15	19
			40	20
		51	7,5	15
		51	15	19
		76	15	19
175	50	32	10	16
	60; 80	76	15	15
	60; 80	76	25	20
200	60	51	15	15
		76	17	17
			20	20
			25	25
			35	26
	70	127	18	26
	70	127	25	26
	80	76	10	16
	80	76	23	23
	100	51	20	20
			25	23; 30
			27	31
		76	22	32
			25	26; 30
			35	25
250	80	76	55	20
	100	76	26	26
	100	76	62	30
300	50	76; 127	60	20
	60	76	50	30
	100	127	32	32
	125	127	25	25
350	60	127	20	20
350	63	203	42	20
