You are here: Home » Products » Resin Bonded Abrasives » Super Thin Cut Off Wheels » ULTRA THIN METAL Cutting Discs 125 X 1.0 X 22.2mm

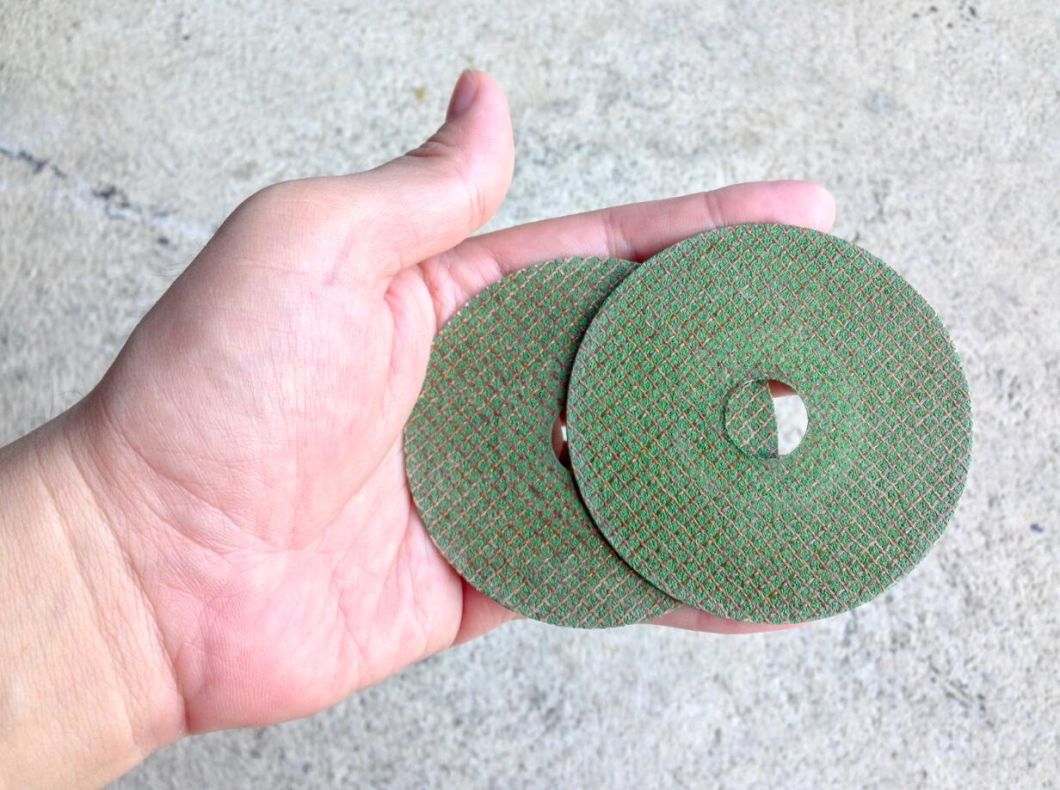

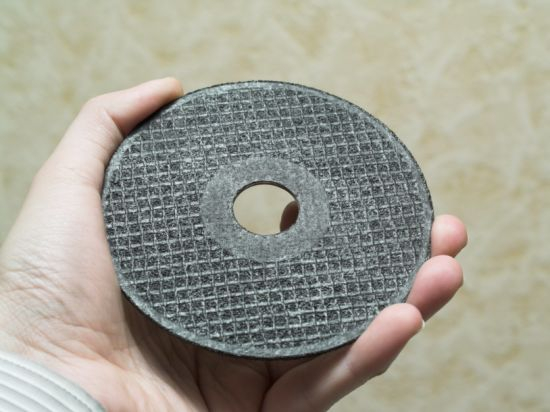

ULTRA THIN METAL Cutting Discs 125 X 1.0 X 22.2mm

• Premium Metal Cutting Discs • High Performance Thin 5" x .040 Cut Off Wheel • Ultra-thin design for minimal material loss • Great Choice for cutting various metals • Proprietary aluminum oxide grain for aggressive cutting action

Quantity:
Availability:





Inquire Add to Basket

Model:
ULTRA THIN METAL Cutting Discs 125 X 1.0 X 22.2mm
Brand:
GC ABRASIVES
Code:
68042210
Min. Order:
3,000 Pieces
Port:
Shanghai, China
Production Capacity:
50, 000, 000PCS/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Transport Package:
Standard Package suit for long sea - voyage

Product Description

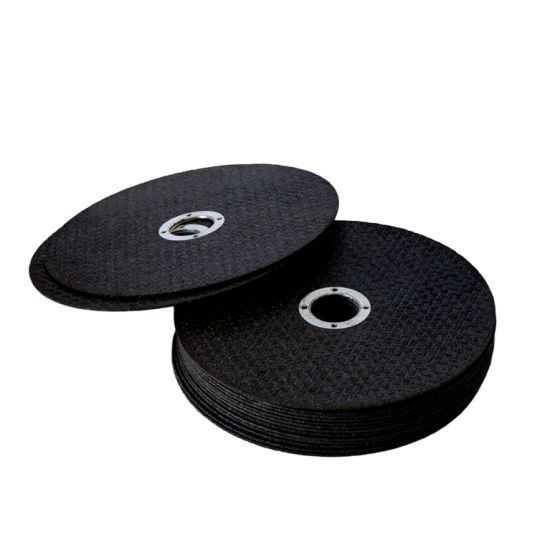

EXTRA THIN CUTTING DISCS

ULTRA THIN CUTTING DISCS- PLATINUM with Ceramic
»Precisiod for maximum manufacturem performance
»Extended disc life with reduced dust
»Faster cutting to maximise productivity Iron free, suitable for use on all ferrous metals
»Compliant with MPA, ISO 2000.

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per Pack	Qty per Carton
	100(4")	1.0	16.0	15,300	25	400
	115(4.5")	1.0	22,2	13,300	25	200
	125 (5")	1.0	22,2	12,200	25	200
	125 (5")	1.6	22,2	12,200	25	200
	180(7")	1.6	22.2	8,600	25	100
	230(9")	1.9	22,2	6,600	25	100

ULTRA THIN CUTTING DISCS- CLASSIC with White Aluminum
»Sharp abrasive material for faster cutting
»Long lasting design reduces disc changes
»Excellent rigidity for straighter cuts
»Compliant with MPA, ISO 2000.

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per Pack	Qty per Carton
	100(4")	1.0	16.0	15,300	25	400
	115(4.5")	1.0	22,2	13,300	25	200
	125 (5")	1.0	22,2	12,200	25	200
	125 (5")	1.6	22,2	12,200	25	200
	180(7")	1.6	22.2	8,600	25	100
	230(9")	1.9	22,2	6,600	25	100

CUTTING DISCS
CUTTING DISCS-PLATINUM with Ceramic
»Optimised for back-grinding between weld passes
»Made with ultra fast cutting CA+ material
»free, suitable for use on all ferrous metals
»Compliant with MPA, ISO 2000.

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per pack	Qty per Carton
	100(4")	2.5	16.0	15,300	25	200
	100(4")	3.2	16.0	15,300	25	200
	115(4.5")	2.5	22,2	13,300	25	200
	115(4.5")	3.2	22.2	13,300	25	200
	125 (5")	2.5	22,2	12,200	25	200
	125 (5")	3.2	22,2	12,200	25	200
	180(7")	2.5	22.2	8,600	25	100
	180(7")	3.2	22.2	8,600	25	100
	230(9")	2.5	22,2	6,600	25	100
	230(9")	3.2	22.2	6,600	25	100

CUTTING DISCS-CLASSIC with Aluminum
»Suitable for back-grinding between weld passes
»Extended disc life with reduced dust
»Iron free, suitable for use on all ferrous metals
»Compliant with MPA, ISO 2000.

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per pack	Qty per Carton
	100(4")	2.5	16.0	15,300	25	200
	100(4")	3.2	16.0	15,300	25	200
	115(4.5")	2.5	22,2	13,300	25	200
	115(4.5")	3.2	22.2	13,300	25	200
	125 (5")	2.5	22,2	12,200	25	200
	125 (5")	3.2	22,2	12,200	25	200
	180(7")	2.5	22.2	8,600	25	100
	180(7")	3.2	22.2	8,600	25	100
	230(9")	2.5	22,2	6,600	25	100
	230(9")	3.2	22.2	6,600	25	100

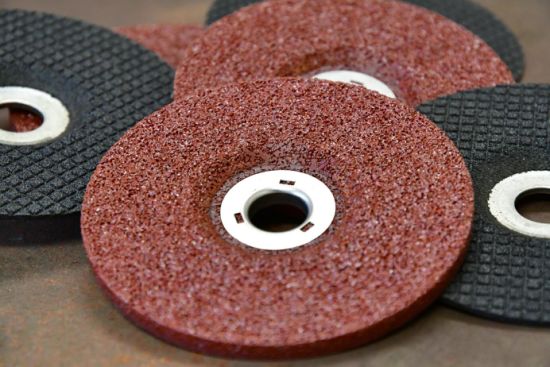

GRINDING WHEELS
GRINDING WHEELS-PLATINUM with Ceramic
»Made with premium CA+ material
»Ultra high stock removal rates reduce your process times
»Long lasting composition reduces disc change frequency
»Low vibration for operator comfort and safety
»Dual layer construction helps avoid premature shedding
»Compliant with MPA, ISO 2000.

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per pack	Qty per Carton
	100(4")	6.4	16.0	15,300	25	400
	115(4.5")	6.4	22,2	13,300	25	200
	125 (5")	6.4	22,2	12,200	25	200
	180(7")	6.4	22.2	8,600	25	100
	230(9")	6.4	22,2	6,600	25	100

GRINDING WHEELS PLUS with Zirconium Aluminum
»Made with premium Zirconium material
»Ultra high stock removal rates reduce your process times
»Long lasting composition reduces disc change frequency
»Low vibration for operator comfort and safety
»Dual layer construction helps avoid premature shedding
»Compliant with MPA, ISO 2000.

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per pack	Qty per Carton
	100(4")	6.4	16.0	15,300	25	400
	115(4.5")	6.4	22,2	13,300	25	200
	125 (5")	6.4	22,2	12,200	25	200
	180(7")	6.4	22.2	8,600	25	100
	230(9")	6.4	22,2	6,600	25	100

GRINDING WHEELS CLASSIC with Aluminum
»Suitable for back-grinding between weld passes
»Extended disc life with reduced dust
»Iron free, suitable for use on all ferrous metals
»Compliant with MPA, ISO 2000.

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per pack	Qty per Carton
	100(4")	6.4	16.0	15,300	25	400
	115(4.5")	6.4	22,2	13,300	25	200
	125 (5")	6.4	22,2	12,200	25	200
	180(7")	6.4	22.2	8,600	25	100
	230(9")	6.4	22,2	6,600	25	100

CHOP SAW BLADES
»For power of machines over 3KW
»25.4mm bore diameter suits most machines
»Adopt for all kinds of metal
»Made from high grade Aluminum oxide abrasive material

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per pack	Qty per Carton
	300(12")	3.2	25.4	5,100	/	25
	350(14")	3.2	25.4	4,400	/	25
	400 (16")	3.2	25.4	3,800	/	25

Flexible Grinding Wheels

SKU#	Diameter mm (Inch)	Thickness (mm)	Center Hole (mm)	Max. Speed Rpm	Qty per pack	Qty per Carton
	100(4")	2.5	16.0	15,300	25	300
	115(4.5")	3.0	22,2	13,200	25	200
	125 (5")	3.0	22,2	12,200	25	200
	180(7")	3.0	22.2	8,400	25	100

Remarks: WA series have five colors-black/green/yellow/brown/red; Five grit sizes: WA36/WA46/WA60/WA80/WA120.

Semi Flexible Grinding Discs

SKU#	Diameter mm (Inch)	Center Hole (mm)	Max. Speed Rpm	Qty per pack	Qty per Carton
	100(4")	16.0	15,300	25	300
	115(4.5")	22,2	13,200	25	200
	125 (5")	22,2	12,200	25	200
	180(7")	22.2	8,400	25	100

Grinding Wheels

Tapered Cup Grinding Wheel
Metal: General grinding, cleaning and smoothing of ferrous materials.
Masonry: Light grinding and smoothing on masonry products .

SKU#	Size	Type	Max. Speed Rpm	Qty per pack	Qty per Carton
	76x34xM14	Masonry	15,300	25	400
	110x56xM14	Masonry	13,300	25	200
	130x56xM14	Masonry	12,200	25	200
	110x56xM14	Metal	8,600	25	100
	130x55xM14	Metal	6,600	25	100

Accessories
Flexible Grinding Wheel Back-up Pad

»Flexible grinding wheel backup pad
»Clear plastic support plate for INGLAU Flexible Grinding Wheel
»Provides less vibration and noise than a conventional grinding wheel
»Use with right angle grinders

Brand	INGLAU
Center Hole Diameter	0.87 Inch
Center Hole Diameter (Metric)	22.098 mm
Color	Clear
Converted Form	Backup Pads, Disc
Diameter	3.37 Inch, 4.62 Inch
Diameter (Metric)	117.348 mm, 85.598 mm
Equipment - Machines	Right Angle Grinders
Form Type	Type 27
Industries	Marine, Metalworking
Product Form	Backup Pad, Pad
Sub Industries	Builders Hardware, Medical Instruments, Metal Fabrication, Metal Implants, Plating & Polishing, Plumbing Fixtures, Turbine Engines
Type	Regular
