Segmented Metal/Stainless Diamond Saw Bladee

Quantity:




Inquire Add to Basket

Min. Order:
100 Pieces
Port:
Shanghai, China
Production Capacity:
100000PCS/Year
Payment Terms:
L/C, T/T, D/P

Model NO.:
4-1/2"Dia x 7/8", 5/8" Arbor Size Wet/Dry
Shape:
Round
Customized:
Customized
Usage:
Stone Cutting
Manufacturing Arts:
Cutting
Trademark:
INGLAU
Transport Package:
as Requested
Specification:
4-1/2"Dia x 7/8", 5/8" Arbor Size Wet/Dry
Origin:
China
HS Code:
82023100
Blade Type:
Segmented
Manufacturing Process:
Brazing
Application:
Ceramic
Size:
115mm
Graininess:
100#
Thickness:
10mm

Product Description

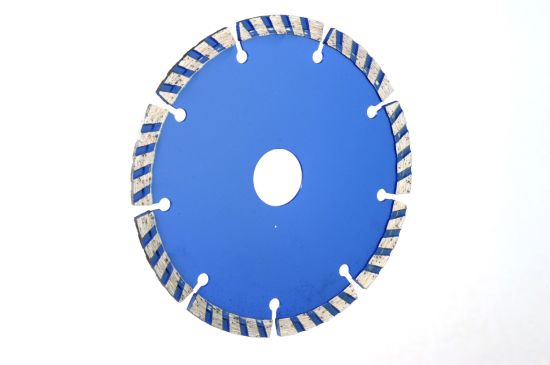

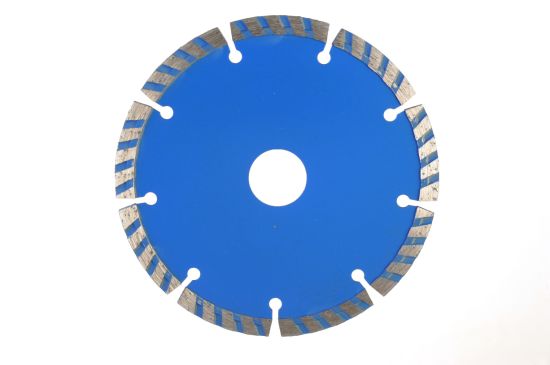

SEGMENT TYPE (DRY)
This type of blades is a quality product at a competitive price. It is suitable for general purpose
cutting: building materials, granite, marble, concrete, concrete reinforced with steel engineering bricks. roof tiles and various other masonry products.

Outer	Outer	Segment	Segment
Diameter(mm)	Diameter(mm)	Thickness(mm)	Height(mm)
4"	105	1.8	7/8/10
4.3"	110	1.8	7/8/10
4.5"	115	1.8	7/8/10
5"	125	2.0	7/8/10
6"	150	2.2	7/8/10
7"	180	2.2	7/8/10
8"	200	2.4	7/10/12
9"	230	2.4	7/10/12
10"	250	2.8	7/10/12
12"	300	3.0	7/8/10/12
14"	350	3.2	7/8/10/12
16"	400	3.4	7/8/10/12

CONTINUOUS RIM(WET)
This type of blades is a quality product at a competitive price. It is suitable for general purpose cutting: building materials, granite, marble, concrete, concrete reinforced with steel engineering bricks. roof tiles and various other masonry products.

Outer	Outer	Segment	Segment
Diameter(mm)	Diameter(mm)	Thickness(mm)	Height(mm)
4"	105	1.8	7/8/10
4.3"	110	1.8	7/8/10
4.5"	115	1.8	7/8/10
5"	125	2.0	7/8/10
6"	150	2.2	7/8/10
7"	180	2.2	7/8/10
8"	200	2.4	7/10/12
9"	230	2.4	7/10/12
10"	250	2.8	7/10/12
12"	300	3.0	7/8/10/12
14"	350	3.2	7/8/10/12
16"	400	3.4	7/8/10/12

*Other specification available and arbor hole size as customers specify when order
*Available hole size: knockdown, 16/19/20/22.2/254/30/35/50

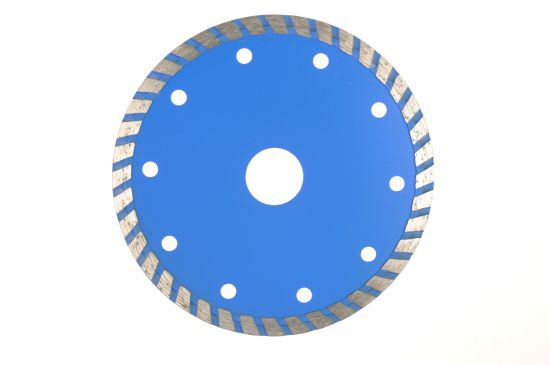

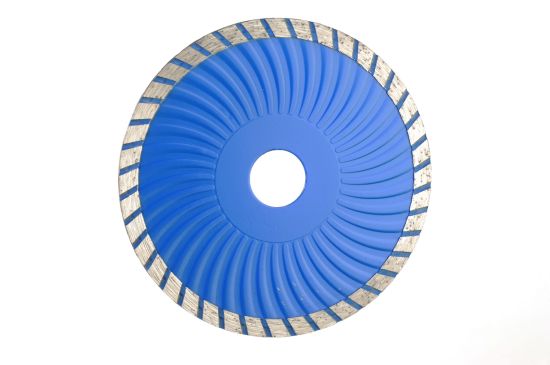

TURBO TYPE (DRY & WET)
This type of blades is a quality product and good for general purpose cutting of most materials, such as building materials, granite, marble, concrete, concrete reinforced with steel, engineering bricks, roof tiles and various other types of masonry products. These blades provide faster cutting with smooth stock removal and improved cooling..

Outer	Outer	Segment	Segment
Diameter(mm)	Diameter(mm)	Thickness(mm)	Height(mm)
4"	105	1.8	7/8/10
4.3"	110	1.8	7/8/10
4.5"	115	1.8	7/8/10
5"	125	2.0	7/8/10
6"	150	2.2	7/8/10
7"	180	2.2	7/8/10
8"	200	2.4	7/10/12
9"	230	2.4	7/10/12
10"	250	2.8	7/10/12
12"	300	3.0	7/8/10/12
14"	350	3.2	7/8/10/12

UNIVERSAL BLADES
Laser welded professional saw blades can be used for the high performance of cutting of building materials. concrete reinforced with steel, bricks, blocks and various other types of masonry products.

Outer	Outer	Segment	Segment
Diameter(mm)	Diameter(mm)	Thickness(mm)	Height(mm)
4.5"	115	2.2	7/8/10
5"	125	2.2	7/8/10
7"	180	2.4	7/8/10
8"	200	2.4	8/10/12
9"	230	2.5	8/10/12
10"	250	2.6	8/10/12
12"	300	3.2	8/10/12
14"	350	3.2	8/10/12
16"	400	3.4	8/10/12
18"	450	3.6	8/10/12

*Other specification available and arbor hole size as customers specify when order
*Available hole size: knockdown, 16/19/20/22.2/254/30/35/50

TUCK POINT

Outer	Segment	No. of Seg.
Diameter(mm)	Demension TxH(mm)
112	3.3~3.5x10	8
178	4.0x7	14
200	6.0x7	14
300	6.0x12	14
350	6.0x12	21

*Arbor hole size as customers specify when order
*Available hole size: knockdown, 16/19/20/22.2/254/30/35/50

GRINDING CUP WHEEL

Diameter(mm)	Type of Grinder	Segment size(mm)
60	Turbo Type	7.0x3.5
100	Turbo W/nut	20.0x5.0
178	Turbo W/nut	8.0x6.0
105	Flat Turbo Type	8.0x6.0
105	Flat Type	8.0x6.0
88	Segment Type	6.0x3.5
96	Segment Type	7.0x4.0
96	Rim Type	7.0x4.0
100	Double Line	8/8x6/6
178	Double Line	8/8x7/7
125	L-Shape	6x7/8
150	L-Shape	6x8/10
