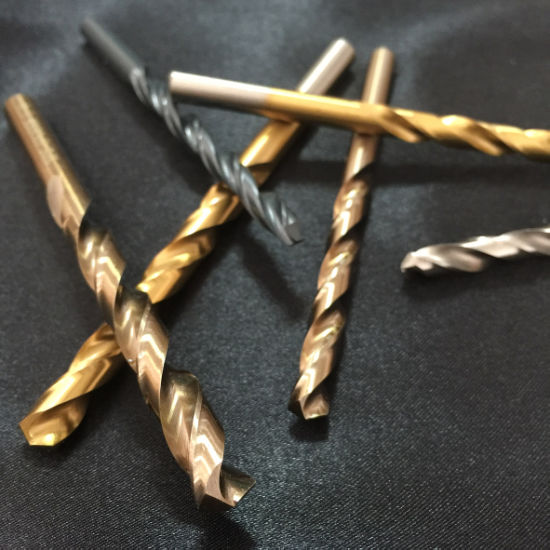

Rolled, HSS Straight Shank Twist Drill -DIN1897

Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 1,000 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • INGLAU

  • as Requested

  • Metal drill bits HSS-G, metric

  • Crafted by Inglau Tools

  • 82075010

  • Customized

  • BIN, AISI

  • DIN1897

  • Twist Drill Bit

  • High Speed Steel

  • Well Drilling, Metal Drilling, Masonry Drilling

HSS Straight Shank Twist Drills DIN1897

Rolled, HSS Straight Shank Twist Drill -DIN1897

Rolled, HSS Straight Shank Twist Drill -DIN1897 Rolled, HSS Straight Shank Twist Drill -DIN1897

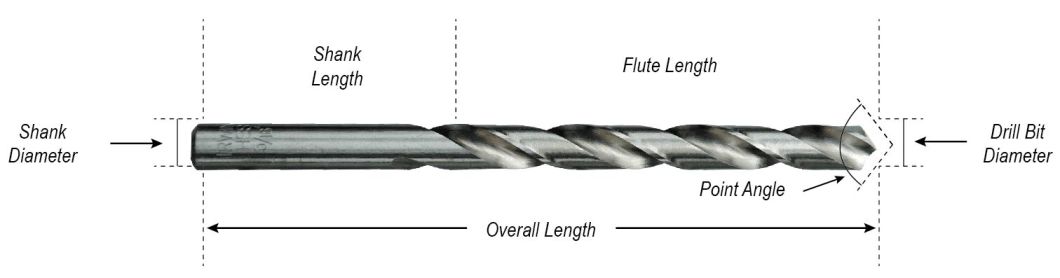

D L1 L2 D L1 L2 D L1 L2
1.00 26 7 6.30 70 31 11.60 95 47
1.10 28 7 6.40 70 31 11.70 95 47
1.20 30 8 6.50 70 31 11.80 95 47
1.30 30 8 6.60 70 31 11.90 102 51
1.40 32 9 6.70 70 31 12.00 102 51
1.50 32 9 6.80 74 34 12.10 102 51
1.60 34 10 6.90 74 34 12.20 102 51
1.70 34 10 7.00 74 34 12.30 102 51
1.80 36 11 7.10 74 34 12.40 102 51
1.90 36 11 7.20 74 34 12.50 102 51
2.00 38 12 7.30 74 34 12.60 102 51
2.10 38 12 7.40 74 34 12.70 102 51
2.20 40 13 7.50 74 34 12.80 102 51
2.30 40 13 7.60 79 37 12.90 102 51
2.40 43 14 7.70 79 37 13.00 102 51
2.50 43 14 7.80 79 37 13.10 102 51
2.60 43 14 7.90 79 37 13.20 102 51
2.70 46 16 8.00 79 37 13.30 107 54
2.80 46 16 8.10 79 37 13.40 107 54
2.90 46 16 8.20 79 37 13.50 107 54
3.00 46 16 8.30 79 37 13.60 107 54
3.10 49 18 8.40 79 37 13.70 107 54
3.20 49 18 8.50 79 37 13.80 107 54
3.30 49 18 8.60 84 40 13.90 107 54
3.40 52 20 8.70 84 40 14.00 107 54
3.50 52 20 8.80 84 40 14.50 111 56
3.60 52 20 8.90 84 40 15.00 111 56
3.70 52 20 9.00 84 40 15.50 115 58
3.80 55 22 9.10 84 40 16.00 115 58
3.90 55 22 9.20 84 40 16.50 119 58
4.00 55 22 9.30 84 40 17.00 119 58
4.10 55 22 9.40 84 40 17.50 123 62
4.20 55 22 9.50 84 40 18.00 123 62
4.30 58 24 9.60 89 43 18.50 127 62
4.40 58 24 9.70 89 43 19.00 127 62
4.50 58 24 9.80 89 43 19.50 131 66
4.60 58 24 9.90 89 43 20.00 131 66
4.70 58 24 10.00 89 43
4.80 62 26 10.10 89 43
4.90 62 26 10.20 89 43
5.00 62 26 10.30 89 43
5.10 62 26 10.40 89 43
5.20 62 26 10.50 89 43
5.30 66 28 10.60 89 43
5.40 66 28 10.70 95 47
5.50 66 28 10.80 95 47
5.60 66 28 10.90 95 47
5.70 66 28 11.00 95 47
5.80 66 28 11.10 95 47
5.90 66 28 11.20 95 47
6.00 66 28 11.30 95 47
6.10 70 31 11.40 95 47
6.20 70 31 11.50 95 47
