Non-Woven Aluminum Oxide Mounted Flap Wheel, Straight Shank Type, 3" Dia, 1" Face Width

Non-Woven Aluminum Oxide Mounted Flap Wheel, Straight Shank Type, 3" Dia, 1" Face Width

Mounted flap wheel is made out of non-woven nylon in which abrasive grit is embedded. The flexible open-cell structure of the non-woven material makes the product very elastic and ensures cool grinding.

Quantity:
Availability:





Inquire Add to Basket

Model:
Non-Woven Aluminum Oxide Mounted Flap Wheel, Straight Shank Type, 3" Dia, 1" Face Width
Brand:
GC ABRASIVES
Code:
68042210
Min. Order:
1,000 Pieces
Port:
Shanghai, China
Production Capacity:
50, 000, 000PCS/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Transport Package:
Standard Package suited for long sea - voyage

Product Description

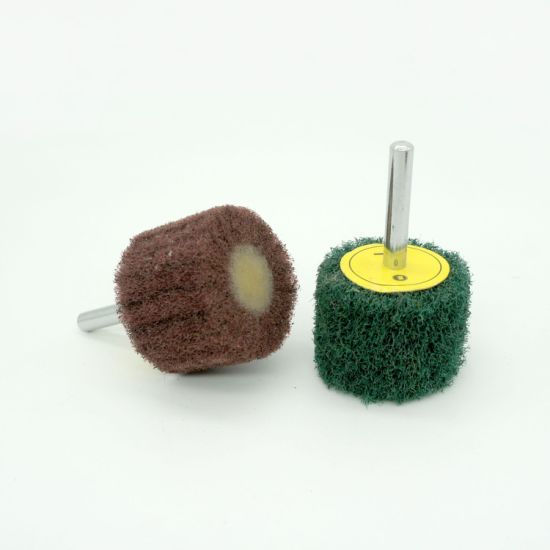

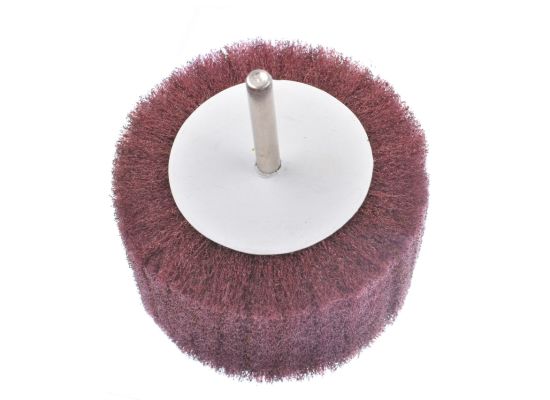

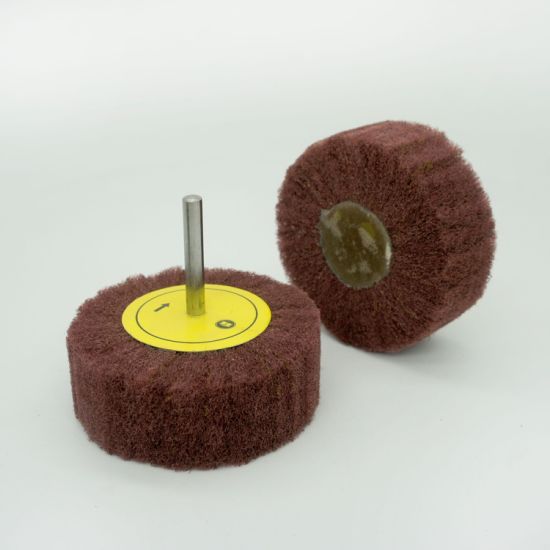

Non Woven Flap Wheel with Shaft
Description:
This High Performance Nonwoven material is converted into wheels on 6-mm shaft to be used on straight grinders.
Recommended applications:

Work surfaces:
Stainless steel, standard or alloyed steel, nonferrous metals and alloys, aluminum, cast iron, titanium, plastic.

SKU#	Diameter mm	Width mm	Shaft mm	Coarse	Medium	Fine	Ultra Fine	Max. Speed	Qty per pack	Qty per Carton
	30	10	6	•	•	•	•	17,100	10	200
	30	20	6	•	•	•	•	17,100	10	200
	30	30	6	•	•	•	•	17,100	10	200
	40	20	6	•	•	•	•	17,100	10	100
	40	30	6	•	•	•	•	17,100	10	100
	50	20	6	•	•	•	•	13,700	10	100
	50	30	6	•	•	•	•	13,700	10	100
	60	30	6	•	•	•	•	11,500	10	100
	60	40	6	•	•	•	•	11,500	10	100
	80	30	6	•	•	•	•	8,600	10	100
	80	50	6	•	•	•	•	8,600	10	100
	100	50	6	•	•	•	•	6,000	10	100

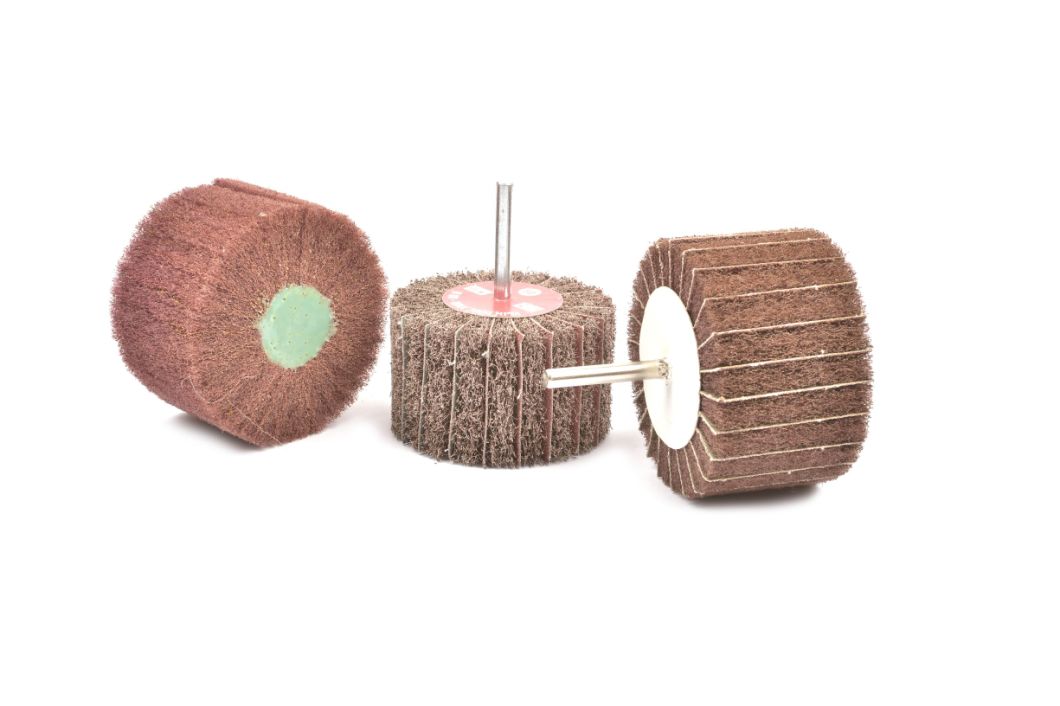

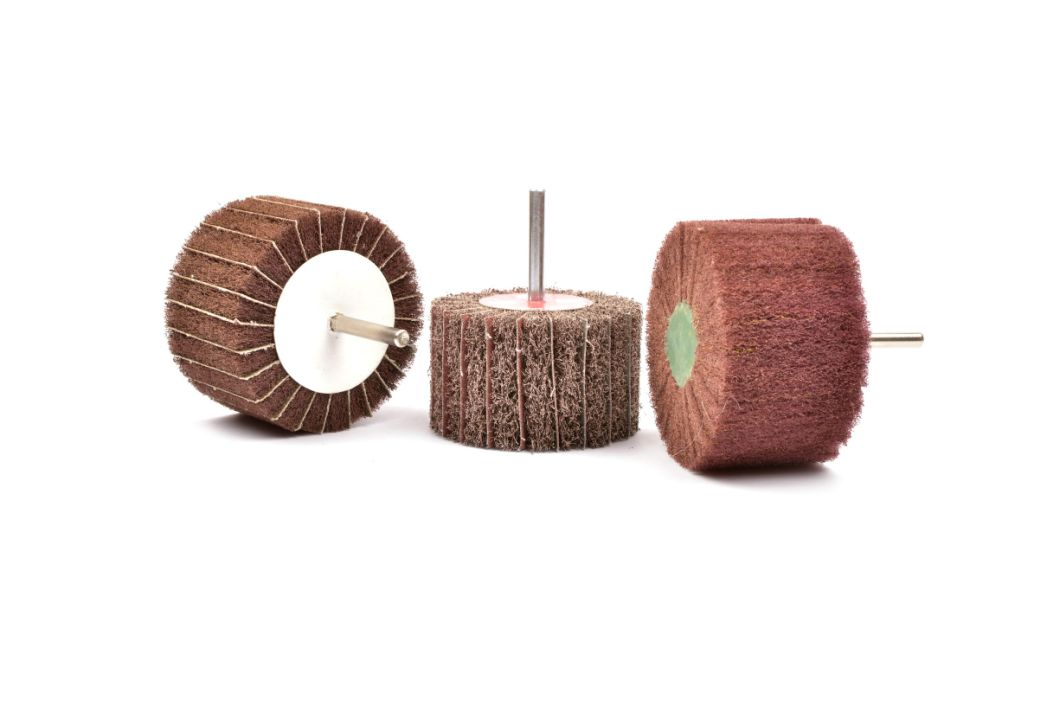

Interleaved Flap Wheels with Shaft
Description: These wheels on 6-mm shaft are made of a combination of cloth flaps and High Performance Non - woven material. To be used on straight grinders.

Work surfaces: Stainless steel, standard or alloyed steel, nonferrous metals and alloys, aluminum, cast iron, titanium.

SKU#	Diameter mm	Width mm	Shaft mm	Grit #60	Grit #100	Grit #150	Grit #240	Max. Speed	Qty per pack	Qty per Carton
	30	20	6	•	•	•	•	17,100	10	200
	30	30	6	•	•	•	•	17,100	10	200
	40	20	6	•	•	•	•	17,100	10	200
	40	30	6	•	•	•	•	17,100	10	100
	50	30	6	•	•	•	•	13,700	10	100
	60	30	6	•	•	•	•	13,700	10	100
	60	40	6	•	•	•	•	11,500	10	100
	80	50	6	•	•	•	•	8,600	10	100
	100	50	6	•	•	•	•	6,000	10	100
