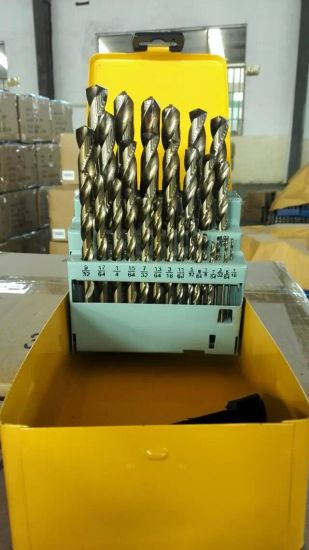

Milled, HSS Straight Shank Twist Drill -Screw Machine Length

Quantity:




Inquire Add to Basket

Min. Order:
1,000 Pieces
Port:
Shanghai, China
Production Capacity:
50, 000, 000PCS/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal, Money Gram

Model NO.:
3/64"~2", 1#~60#, A-Z
Trademark:
INGLAU
Transport Package:
as Requested
Specification:
3/64"~2", 1#~60#, A-Z
Origin:
Crafted by Inglau
HS Code:
82075010
Customized:
Customized
Certification:
BIN, AISI
Length:
Screw Machine Drills
Type:
Twist Drill Bit
Material:
High Speed Steel
Usage:
Well Drilling, Metal Drilling, Masonry Drilling

Product Description

HSS Straight Shank Twist Drill -SCREW MACHINE LENGTH

D Diameter
L1 Overall Length
L2 Flute Length

Milled, HSS Straight Shank Twist Drill -Screw Machine Length

Size	Decimal	Flute Length	Overall Length	Size	Decimal	Flute Length	Overall Length
Size	Equivalent	L1	L2	Size	Equivalent	L1	L2
3/64	0.0469	1/2	1-3/8	1	0.2280	1-5/16	2-7/16
1/16	0.0625	5/8	1-5/8	2	0.2210	1-5/16	2-7/16
5/64	0.0781	11/16	1-11/16	3	0.2130	1-1/4	2-3/8
3/32	0.0938	3/4	1-3/4	4	0.2090	1-1/4	2-3/8
7/64	0.1094	13/16	1-13/16	5	0.2055	1-1/4	2-3/8
1/8	0.1250	7/8	1-7/8	6	0.2040	1-1/4	2-3/8
9/64	0.1406	15/16	1-15/16	7	0.2010	1-3/16	2-1/4
5/32	0.1562	1	2-1/16	8	0.1990	1-3/16	2-1/4
11/64	0.1719	1-1/16	2-1/8	9	0.1960	1-3/16	2-1/4
3/16	0.1875	1-1/8	2-3/16	10	0.1935	1-3/16	2-1/4
13/64	0.2031	1-3/16	3-1/4	11	0.1910	1-3/4	2-1/4
7/32	0.2188	1-1/4	2-3/8	12	0.1890	1-3/16	2-3/16
15/64	0.2344	1-5/16	2-7/16	13	0.1850	1-3/16	2-3/16
1/4	0.2500	1-3/8	2-1/2	14	0.1820	1-3/16	2-3/16
17/64	0.2656	1-7/16	2-5/8	15	0.1800	1-3/16	2-3/16
9/32	0.2812	1-1/2	2-11/16	16	0.1770	1-3/16	2-3/16
19/64	0.2969	1-9/16	2-3/4	17	0.1730	1-3/16	2-3/16
5/16	0.3125	1-5/8	2-13/16	18	0.1695	1-1/8	2-1/8
21/64	0.3281	1-11/16	2-15/16	19	0.1660	1-1/8	2-1/8
11/32	0.3438	1-11/16	3	20	0.1610	1-1/8	2-1/8
23/64	0.3594	1-3/4	3-1/16	21	0.1590	1-1/8	2-1/8
3/8	0.3750	1-13/16	3-1/8	22	0.1570	1-1/8	2-1/8
25/64	0.3906	1-7/8	3-1/4	23	0.1540	1-1/16	2-1/16
13/32	0.4062	1-15/16	3-5/16	24	0.1520	1-1/16	2-1/16
27/64	0.4219	2	3-3/8	25	0.1495	1-1/16	2-1/16
7/16	0.4375	2-1/16	3-7/16	26	0.1470	1-1/16	2-1/16
29/64	0.4531	2-1/8	3-9/16	27	0.1440	1-1/16	2-1/16
15/32	0.4688	2-1/8	3-5/8	28	0.1405	15/16	15/16
31/64	0.4844	2-3/16	3-11/16	29	0.1360	15/16	15/16
1/2	0.5000	2-1/4	3-3/4	30	0.1285	15/16	15/16
33/64	0.5156	2-3/8	3-7/8	31	0.1200	7/8	1-7/8
17/32	0.5312	2-3/8	3-7/8	32	0.1160	7/8	1-7/8
35/64	0.5469	2-1/2	4	33	0.1130	7/8	1-7/8
9/16	0.5625	2-1/2	4	34	0.1110	7/8	1-7/8
37/64	0.5781	2-5/8	4-1/8	35	0.1100	7/8	1-7/8
19/32	0.5938	2-5/8	4-1/8	36	0.1065	13/16	1-13/16
39/64	0.6094	2-3/4	4-1/4	37	0.1040	13/16	1-13/16
5/8	0.6250	2-3/4	4-1/4	38	0.1015	13/16	1-13/16
41/64	0.6406	2-7/8	4-1/2	39	0.0995	13/16	1-13/16
21/32	0.6562	2-7/8	4-1/2	40	0.0980	13/16	1-13/16
43/64	0.6719	2-7/8	4-5/8	41	0.0960	13/16	1-13/16
11/16	0.6875	2-7/8	4-5/8	42	0.0935	3/4	1-3/4
45/64	0.7031	3	4-3/4	43	0.0890	3/4	1-3/4
23/32	0.7188	3	4-3/4	44	0.0860	3/4	1-3/4
47/64	0.7344	3-1/8	5	45	0.0820	3/4	1-3/4
3/4	0.7500	3-1/8	5	46	0.0810	3/4	1-3/4
49/64	0.7656	3-1/4	5-1/8	47	0.0785	11/16	1-11/16
25/32	0.7812	3-1/4	5-1/8	48	0.0760	11/16	1-11/16
51/64	0.7969	3-3/8	5-1/4	49	0.0730	11/16	1-11/16
13/16	0.8125	3-3/8	5-1/4	50	0.0700	11/16	1-11/16
53/64	0.8281	3-1/2	5-3/8	51	0.0670	11/16	1-11/16
27/32	0.8438	3-1/2	5-3/8	52	0.0635	11/16	1-11/16
55/64	0.8594	3-1/2	5-1/2	53	0.0595	5/8	1-5/8
7/8	0.8750	3-1/2	5-1/2	54	0.0550	5/8	1-5/8
57/64	0.8906	3-5/8	5-5/8	55	0.0520	5/8	1-5/8
29/32	0.9062	3-5/8	5-5/8	56	0.0465	1/2	1-3/8
59/64	0.9219	3-3/4	5-3/4	57	0.0430	1/2	1-3/8
15/16	0.9375	3-3/4	5-3/4	58	0.0420	1/2	1-3/8
61/64	0.9531	3-7/8	5-7/8	59	0.0410	1/2	1-3/8
31/32	0.9688	3-7/8	5-7/8	60	0.0400	1/2	1-3/8
63/64	0.9844	4	6
1	1.0000	4	6
1-1/16	1.0625	4	6-1/4
1-1/8	1.1250	4	6-3/8
1-3/16	1.1875	4-1/4	6-5/8
1-1/4	1.2500	4-3/8	6-3/4
1-5/16	1.3125	4-3/8	7
1-3/8	1.3750	4-1/2	7-1/8
1-7/16	1.4375	4-3/4	7-3/8
1-1/2	1.5000	4-7/8	7-1/2
1-9/16	1.5625	4-7/8	7-3/4
1-5/8	1.6250	4-7/8	7-3/4
1-11/16	1.6875	5-1/8	8
1-3/4	1.7500	5-1/8	8
1-13/16	1.8125	5-3/8	8-1/4
1-7/8	1.8750	5-3/8	8-1/4
1-15/16	1.9375	5-5/8	8-1/2
2	2.0000	5-5/8	8-1/2
