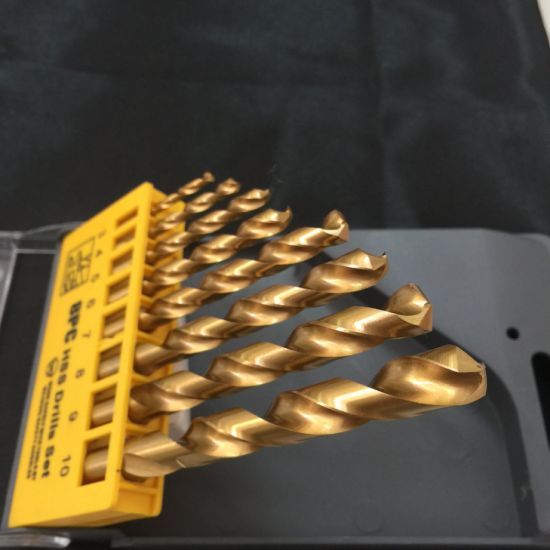

Fully Ground HSS Straight Shank Twist Drill- DIN340

Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 300 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P

  • HSS Straight Shank Twist Drill- DIN340

  • Impact Drill

  • Round

  • New

  • Customized

  • Milled Fully Ground

  • HSS or HSS Co

  • 0.2mm~20mm

  • 118 & 135 Split Point

  • INGLAU

  • as Requested

  • Crafted by Inglau Tools

  • 82975090

  • Rotary Hammer Drill

  • Hammer Drill

  • Inglau

  • Building and Industrial

  • Canines Style

  • 1mm~20mm, 1MM~20MM

Fully Ground HSS Straight Shank Twist Drill- DIN340

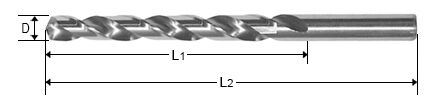

HSS Straight Shank Twist Drill -DIN340

D Diameter

L1 Overall Length

L2 Flute Length

Fully Ground HSS Straight Shank Twist Drill- DIN340
D L1 L2 D L1 L2 D L1 L2
1.00 56 33 6.30 148 97 11.60 195 128
1.10 60 37 6.40 148 97 11.70 195 128
1.20 65 41 6.50 148 97 11.80 195 128
1.30 65 41 6.60 148 97 11.90 205 134
1.40 70 45 6.70 148 97 12.00 205 134
1.50 70 45 6.80 156 102 12.10 205 134
1.60 76 50 6.90 156 102 12.20 205 134
1.70 76 50 7.00 156 102 12.30 205 134
1.80 80 53 7.10 156 102 12.40 205 134
1.90 80 53 7.20 156 102 12.50 205 134
2.00 85 56 7.30 156 102 12.60 205 134
2.10 85 56 7.40 156 102 12.70 205 134
2.20 90 56 7.50 156 102 12.80 205 134
2.30 90 56 7.60 165 109 12.90 205 134
2.40 95 62 7.70 165 109 13.00 205 134
2.50 95 62 7.80 165 109 13.10 205 134
2.60 95 62 7.90 165 109 13.20 205 134
2.70 100 66 8.00 165 109 13.30 214 140
2.80 100 66 8.10 165 109 13.40 214 140
2.90 100 66 8.20 165 109 13.50 214 140
3.00 100 66 8.30 165 109 13.60 214 140
3.10 106 69 8.40 165 109 13.70 214 140
3.20 106 69 8.50 165 109 13.80 214 140
3.30 106 69 8.60 175 115 13.90 214 140
3.40 110 73 8.70 175 115 14.00 214 140
3.50 110 73 8.80 175 115 14.50 220 144
3.60 110 73 8.90 175 115 15.00 220 144
3.70 110 73 9.00 175 115 15.50 227 149
3.80 119 78 9.10 175 115 16.00 227 149
3.90 119 78 9.20 175 115 16.50 235 154
4.00 119 78 9.30 175 115 17.00 235 154
4.10 119 78 9.40 175 115 17.50 241 158
4.20 119 78 9.50 175 115 18.00 241 158
4.30 126 82 9.60 184 121 18.50 247 162
4.40 126 82 9.70 184 121 19.00 247 162
4.50 126 82 9.80 184 121 19.50 254 166
4.60 126 82 9.90 184 121 20.00 254 166
4.70 126 82 10.00 184 121
4.80 132 87 10.10 184 121
4.90 132 87 10.20 184 121
5.00 132 87 10.30 184 121
5.10 132 87 10.40 184 121
5.20 132 87 10.50 184 121
5.30 132 87 10.60 184 121
5.40 139 91 10.70 195 128
5.50 139 91 10.80 195 128
5.60 139 91 10.90 195 128
5.70 139 91 11.00 195 128
5.80 139 91 11.10 195 128
5.90 139 91 11.20 195 128
6.00 139 91 11.30 195 128
6.10 148 97 11.40 195 128
6.20 148 97 11.50 195 128
Fully Ground HSS Straight Shank Twist Drill- DIN340
Fully Ground HSS Straight Shank Twist Drill- DIN340
