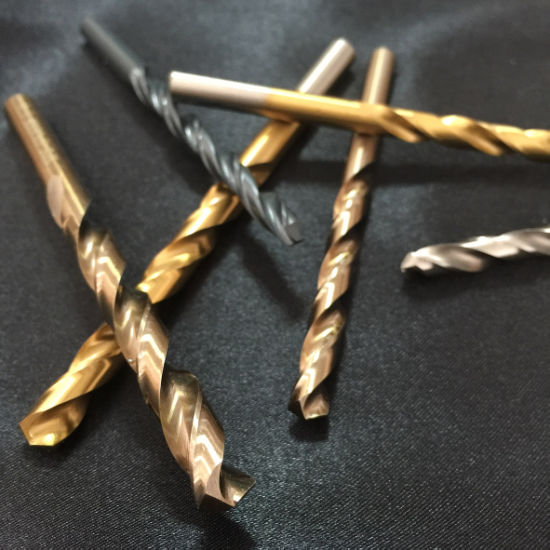

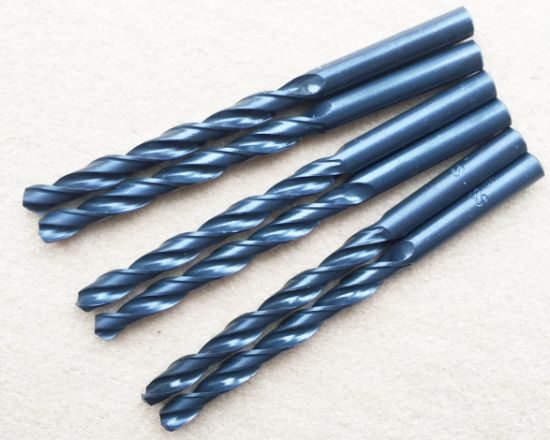

118 Split Point HSS Straight Shank Twist Drill DIN338

Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 300 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P

  • 0.2MM~20MM

  • Impact Drill

  • Round

  • New

  • Customized

  • Fully Ground

  • HSS

  • 0.2mm~20mm

  • 118 & 135 Split Point

  • INGLAU

  • as Requested

  • Crafted by Inglau Tools

  • 82975090

  • Rotary Hammer Drill

  • Hammer Drill

  • Inglau

  • Building and Industrial

  • Canines Style

  • 6mm, Multi-Material Drill Bit 1/8" x 3"

118 Split Point HSS Straight Shank Twist Drill DIN338

HSS Straight Shank Twist Drill -DIN338

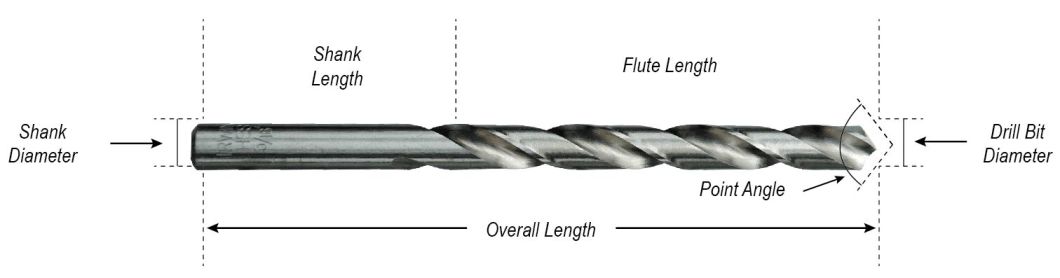

D Diameter

L1 Overall Length

L2 Flute Length 118 Split Point HSS Straight Shank Twist Drill DIN338
D L1 L2 D L1 L2 D L1 L2
0.20 19 2.5 4.70 80 47 10.00 133 87
0.25 19 3 4.80 86 52 10.10 133 87
0.30 19 3 4.90 86 52 10.20 133 87
0.35 19 4 5.00 86 52 10.30 133 87
0.40 20 5 5.10 86 52 10.40 133 87
0.45 20 5 5.20 86 52 10.50 133 87
0.50 22 6 5.30 86 52 10.60 133 87
0.55 24 7 5.40 93 57 10.70 142 94
0.60 24 7 5.50 93 57 10.80 142 94
0.65 26 8 5.60 93 57 10.90 142 94
0.70 28 9 5.70 93 57 11.00 142 94
0.75 28 9 5.80 93 57 11.10 142 94
0.80 30 10 5.90 93 57 11.20 142 94
0.85 32 11 6.00 93 57 11.30 142 94
0.90 32 11 6.10 101 63 11.40 142 94
0.95 34 12 6.20 101 63 11.50 142 94
1.00 34 12 6.30 101 63 11.60 142 94
1.10 36 14 6.40 101 63 11.70 142 94
1.20 38 16 6.50 101 63 11.80 142 94
1.30 40 18 6.60 101 63 11.90 151 101
1.40 40 18 6.70 101 63 12.00 151 101
1.50 43 20 6.80 109 69 12.10 151 101
1.60 43 20 6.90 109 69 12.20 151 101
1.70 46 22 7.00 109 69 12.30 151 101
1.80 46 22 7.10 109 69 12.40 151 101
1.90 46 24 7.20 109 69 12.50 151 101
2.00 49 24 7.30 109 69 12.60 151 101
2.10 49 24 7.40 109 69 12.70 151 101
2.20 53 27 7.50 109 69 12.80 151 101
2.30 53 27 7.60 117 75 12.90 151 101
2.40 57 30 7.70 117 75 13.00 151 101
2.50 57 30 7.80 117 75 13.10 151 101
2.60 57 30 7.90 117 75 13.20 151 101
2.70 61 33 8.00 117 75 13.30 160 108
2.80 61 33 8.10 117 75 13.40 160 108
2.90 61 33 8.20 117 75 13.50 160 108
3.00 61 33 8.30 117 75 13.60 160 108
3.10 65 36 8.40 117 75 13.70 160 108
3.20 65 36 8.50 117 75 13.80 160 108
3.30 65 36 8.60 125 81 13.90 160 108
3.40 70 39 8.70 125 81 14.00 160 108
3.50 70 39 8.80 125 81 14.50 169 114
3.60 70 39 8.90 125 81 15.00 169 114
3.70 70 39 9.00 125 81 15.50 178 120
3.80 75 43 9.10 125 81 16.00 178 120
3.90 75 43 9.20 125 81 16.50 184 125
4.00 75 43 9.30 125 81 17.00 184 125
4.10 75 43 9.40 125 81 17.50 191 130
4.20 75 43 9.50 125 81 18.00 191 130
4.30 80 47 9.60 133 87 18.50 198 135
4.40 80 47 9.70 133 87 19.00 198 135
4.50 80 47 9.80 133 87 19.50 205 140
4.60 80 47 9.90 133 87 20.00 205 140
118 Split Point HSS Straight Shank Twist Drill DIN338
118 Split Point HSS Straight Shank Twist Drill DIN338
