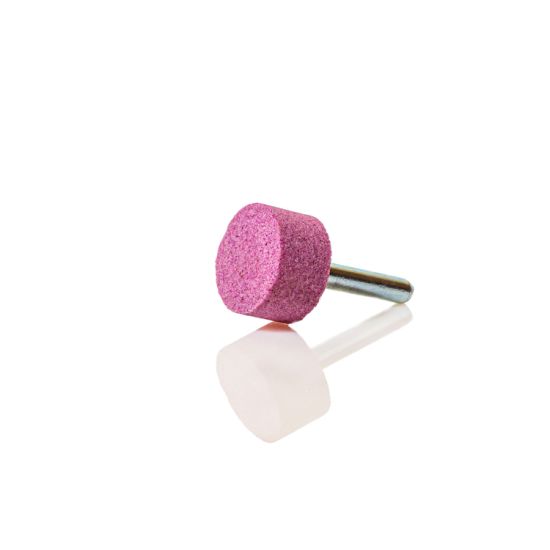

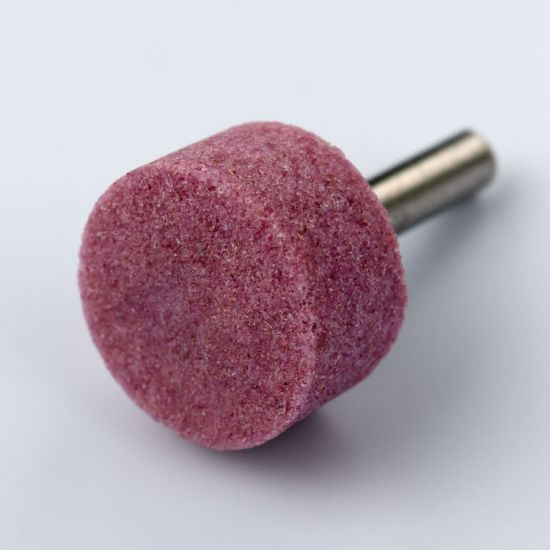

1/4" X 1-1/16" X 1/4" A15 Abrasive Mounted Point
GC ABRASIVES
68042210
1,000 Pieces
Shanghai, China
50, 000, 000PCS/Month
L/C, T/T, D/P, Western Union, Paypal
Standard Package suit for long sea - voyage
GC Abrasives mounted points are top-notch grinding tools with a long service life and high removal rates.
For grinding, deburring and finishing on stainless steel, aluminum, and exotic materials.
Product Features
Debur and finish in one stepControlled metal removal without changing part geometryLong-lifeSmooth, chatter free grindingIdeal for deburring and polishing stainless steel, aluminum, mild steel, and exotics.Non loading on aluminum, brass, bronze, and other non-ferrous metals.
Typical Applications By Industry
Aircraft/Aerospace - Debur and finish engine componentsAutomotive - Debur, chamfer and finish machined/cast partsTool & Die - Clean, debur and finishFabrication - Corner blending, edge breaking, I.D. and O.D. debur and blend.Jewelry - Remove parting lines and finish casting
| Ø 3mm shank Group B | |||||||
| ISO Designation | B41 | B42 | B43 | B44 | B45 | B46 | B47 |
| d1 x b(mm) | 16 x 16 | 13 x 19 | 6 x 8 | 6 x 10 | 5 x 8 | 3 x 8 | 3 x 4 |
| ISO Designation | B51 | B52 | B53 | B54 | B55 | B61 | B62 |
| d1 x b(mm) | 11 x 19 | 10 x 19 | 8 x 16 | 6 x 13 | 3 x 6 | 19 x 8 | 13 x 10 |
| ISO Designation | B63 | B65 | B68 | B71 | B72 | B81 | B82 |
| d1 x b(mm) | 6 x 5 | 3 x 3 | 6 x 2 | 16 x 5 | 13 x 4 | 19 x 8 | 13 x 6 |
| ISO Designation | B84 | B91 | B92 | B93 | B94 | B95 | B96 |
| d1 x b(mm) | 8 x 5 | 13 x 16 | 6 x 6 | 5 x 5 | 4 x 2 | 3 x 5 | 3 x 6 |
| ISO Designation | B97 | B98 | B101 | B102 | B103 | B104 | B105 |
| d1 x b(mm) | 3 x 10 | 2 x 6 | 16 x 18 | 16 x 13 | 16 x 5 | 8 x 10 | 6 x 6 |
| ISO Designation | B106 | B111 | B112 | B113 | B114 | B115 | B121 |
| d1 x b(mm) | 3 x 2 | 11 x 18 | 10 x 13 | 6 x 6 | 6 x 10 | 2 x 3 | 13 |
| ISO Designation | B122 | B123 | B124 | B125 | B131 | B132 | B135 |
| d1 x b(mm) | 10 | 5 | 3 | 6 | 13 x 13 | 10 x 13 | 6 x 13 |
